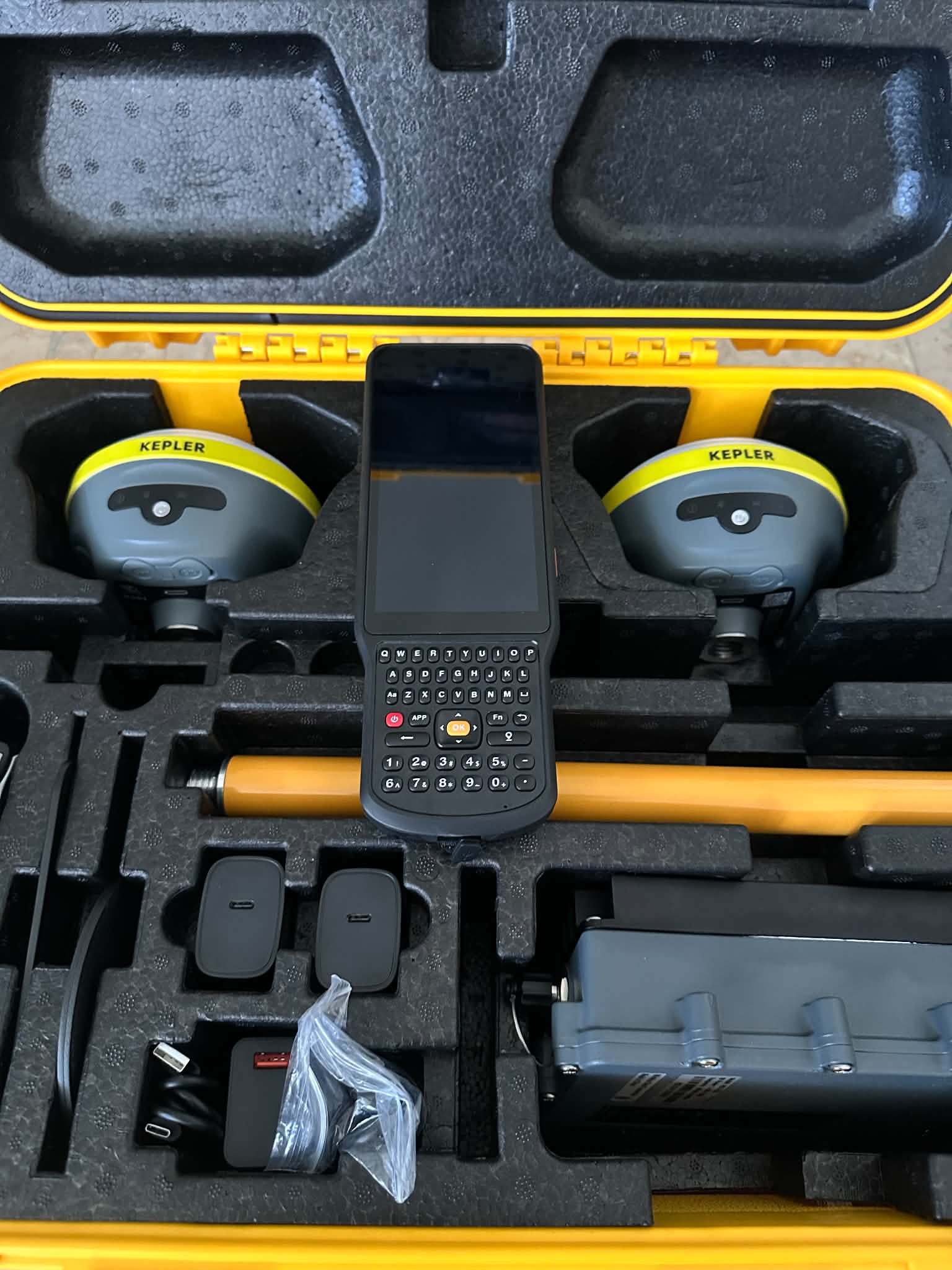

Kepler K501 Base and Rover Set

Kepler K501 Base and Rover Set

CATNAV

Regular price ₱159,999

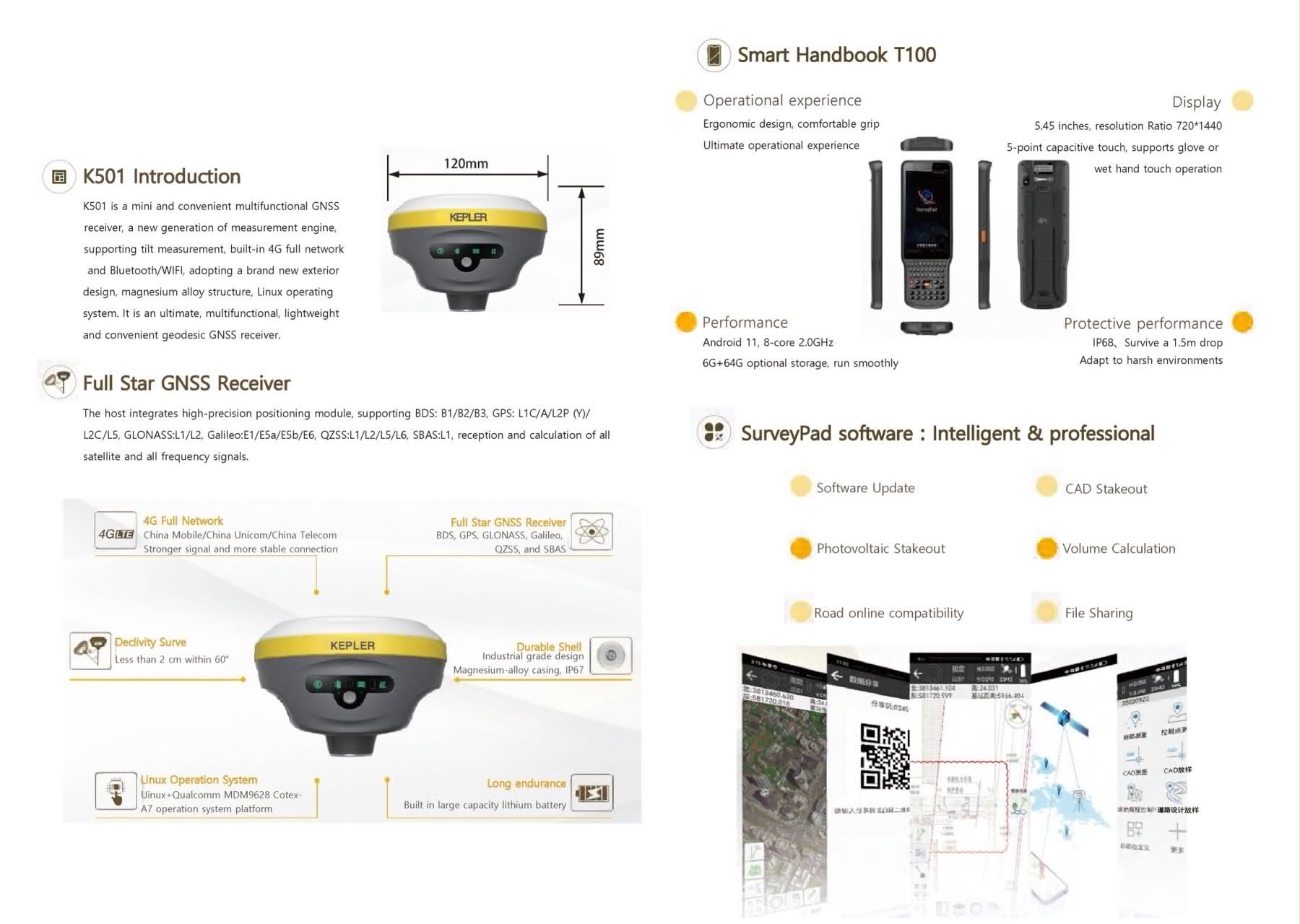

The Kepler K501 is a lightweight, multifunctional GNSS RTK receiver with 1408 channels, full‑constellation support (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS), tilt compensation up to 120°, and rugged IP67 protection. It delivers centimeter‑level RTK accuracy, supports 4G/Wi‑Fi/Bluetooth connectivity, and offers long battery life—making it a strong option for surveyors in the Philippines.

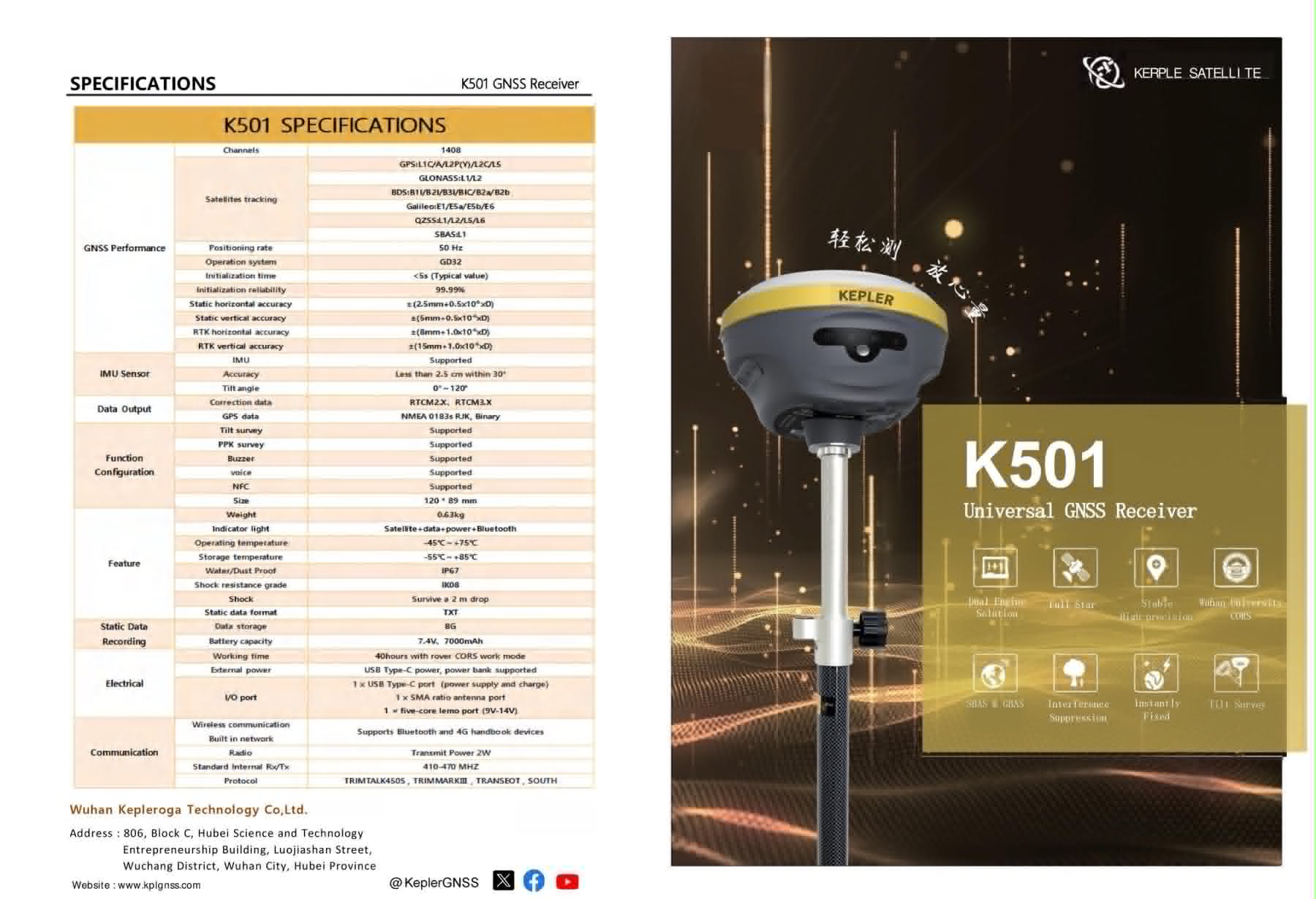

Feature Details
Channels 1408 multi‑frequency
Satellite Systems GPS (L1C/A, L2P(Y), L2C, L5), GLONASS (L1, L2), BeiDou (B1I, B2I, B3I, B1C, B2a, B2b), Galileo (E1, E5a, E5b, E6), QZSS (L1, L2, L5, L6), SBAS (L1)
RTK Accuracy Horizontal: ±(8 mm + 1 ppm); Vertical: ±(15 mm + 1 ppm)
Static Accuracy Plane: ±(2.5 mm + 0.5 ppm); Elevation: ±(5 mm + 0.5 ppm)
Tilt Compensation IMU tilt support up to 120°; accuracy <2 cm within 60°
Operating System Linux‑based
Data Formats RTCM 2.x/3.x, NMEA 0183, RINEX, binary
Connectivity Bluetooth, Wi‑Fi, 4G LTE
Durability IP67 waterproof/dustproof; drop‑proof to 1.8 m
Operating Temperature −45 °C to +75 °C
Battery 7.4 V, 7000 mAh Li‑ion; up to 40 hours in CORS mode
Storage 8 GB internal memory
Weight Compact magnesium alloy design, ~1 kg class
